Products

Below Ground Grease Traps

Below ground grease traps can be easily installed externally or internally if space allows.

Below ground grease traps do need regular maintenance via vacuum tanker emptying to achieve the efficient removal of FOG (fats, oils and grease) from kitchen effluent.

The units also trap food waste sediment and sludge deposits which become separated from the contaminated water.

Some units have a separate separation tanker, whilst others can have a double depth sludge trap volume.

They are ideal for establishments that have a multiple outlet flow and require a large grease capacity with no intervention from site staff.

Below ground grease traps are usually centrally located rather than at point of source due to the size and emptying logistics.




Passive Manual Grease Traps

A passive grease trap separates FOG manually using a simple gravity separation process that does not require an energy source but does need to be emptied manually on a regular basis. There are a variety of passive grease traps available depending on the size of your kitchen and its requirements.  We can supply passive grease traps from 20 Litres up to 5,000 + litres in Polyethylene or Stainless Steel.


Trapzilla

The Trapzilla is a suTrapzilla Logoper-capacity grease interceptor that has a grease retention capacity of up to 80% of its volume in some models, whilst maintaining a high efficiency rate.

The Trapzilla has a unique, patented, curve separation technology that reduces its footprint and enables it to be installed into 90% of commercial establishments.

It is constructed of tough, corrosion resistant polyethylene that provides it with a long life, but it is also supplied with a limited lifetime warranty.

Trapzilla Product Shot The Trapzilla’s patented curve design ensures that there is no buildup of grease in flat spots and the interceptor is able to retain a high capacity compared to most flat-bottomed grease traps that often have a build up of debris in the corners and thus have a lower efficiency.

Trapzilla can manage a maximum of 828kg of grease and a maximum flow rate of 6.31 l/s.

For installations below ground, Trapzilla are supplied with an extension collar adapters (ECA), extension collar and solid top cover to ensure an adequate fit at surface level.

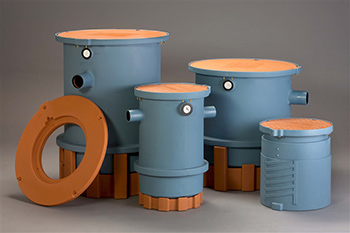

LipuMax

The AQUA MUNDUS LipuMax is a range of below ground grease traps designed to efficiently separate fats, oils and grease from kitchen effluent. Using the physics of gravity and the density difference between fats, oils, grease (FOG) and water, grease floats upwards, sludge sinks downwards and the “cleaned” water flows away.
Due to its expert construction from compact and rigid roto-moulded polyethylene, structural stability is guaranteed with an AQUA MUNDUS LipuMax for 50 years, and you are guaranteed protection against upwelling without any further onsite works. The warranty is valid providing the separator is installed, commissioned and maintained according to manufacturer’s instructions.

The top section of the LipuMax grease trap provides safe access inside the unit. There are three varieties, for load class A15 and B125, each one has a fixed dimension and two raising sections each covering a specific height range. The raising sections can be cut to the exact height as required.




GRU (Grease Removal Units)

Grease Removal Units automatically separates and removes fats, oils and grease from wastewater effluent. These units save manpower and require minimal or zero maintenance, providing you with peace of mind in regards to your grease management.

Grease removal units can also remove solid food waste particles and eliminate foul odours that can be found in manual grease traps. These units are equipped with automatic timers or sensors for self-cleaning and can be used at point of source or in central locations.

With a wide range of models available to treat single & multiple sink appliances, large pass through dishwashers, combination ovens or chicken rotisseries and more, a GRU is now the most preferred option in the modern day kitchen.


LipuMax

The AQUA MUNDUS LipuMax is a range of below ground grease traps designed to efficiently separate fats, oils and grease from kitchen effluent. Using the physics of gravity and the density difference between fats, oils, grease (FOG) and water, grease floats upwards, sludge sinks downwards and the “cleaned” water flows away.
Due to its expert construction from compact and rigid roto-moulded polyethylene, structural stability is guaranteed with an AQUA MUNDUS LipuMax for 50 years, and you are guaranteed protection against upwelling without any further onsite works. The warranty is valid providing the separator is installed, commissioned and maintained according to manufacturer’s instructions.

The top section of the LipuMax grease trap provides safe access inside the unit. There are three varieties, for load class A15 and B125, each one has a fixed dimension and two raising sections each covering a specific height range. The raising sections can be cut to the exact height as required.

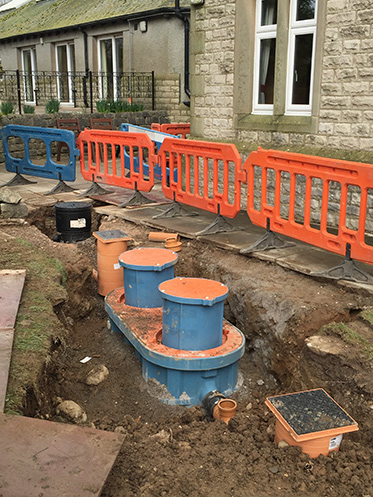

Road Dug Up and Cordoned off for Below Ground Grease Trap Installation
