Trapzilla TSS-95

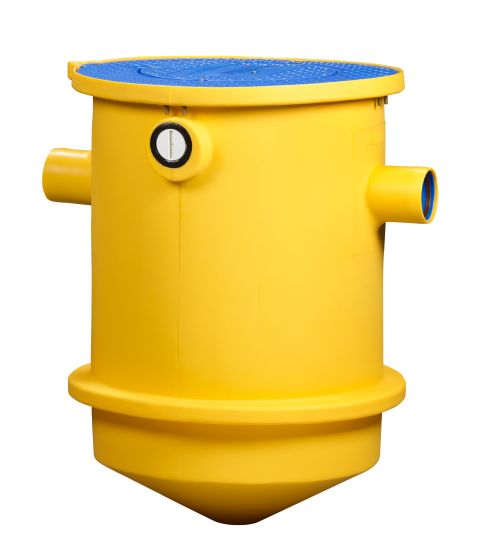

TSS-95 TRAPZILLA SOLIDS SEPARATOR

For in-ground installation

The TSS-95 Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids.  Ideally, a TSS-95 Trapzilla Solids Separator would be installed in conjunction with a TZ-600 or TZ-1826-ECA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency.  Basic Trapzilla Solids Separator Models come with a Standard Adapter Ring lid and a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Aqua Mundus Trapzilla Model No. TSS-95, rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 150 gallons per minute (9.46 l/s) peak flow, 95 gallons (359.61 l) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.


TSS-95-6 TRAPZILLA SOLIDS SEPARATOR WITH 6" INLET/OUTLET

For in-ground installation

The TSS-95-6 Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids.  Ideally, a TSS-95-6 Trapzilla Solids Separator would be installed in conjunction with a TZ-600-6 or TZ-1826-ECA-6 Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency.  Basic Trapzilla Solids Separator Models come with a Standard Adapter Ring lid and a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Aqua Mundus Trapzilla Model No. TSS-95-6, rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 150 gallons per minute (9.46 l/s) peak flow, 95 gallons (359.61 l) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.

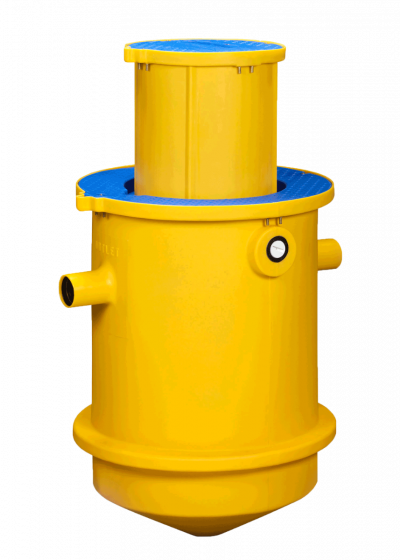

TSS-95-ECA TRAPZILLA SOLIDS SEPARATOR

For in ground installation, up to 18" deep (457mm)

The TSS-95-ECA In-Ground Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids.  Ideally, a TSS-95-ECA Trapzilla Solids Separator would be installed in conjunction with a TZ-600-ECA or TZ-1826-ECA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency.  In-Ground Trapzilla Solids Separator Models come with an Extension Collar Adapter Ring lid, 18" long Single-Piece Extension Collar and a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Aqua Mundus Trapzilla Model No. TSS-95-ECA, rotationally molded poly- ethylene solids separator(s) for in-ground installation, rated at 150 gallons per minute (9.46 l/s) peak flow, 95 gallons (359.61 l) of solids storage capacity, fully removable cover for vacuum ac- cess by pump truck for solids removal, and including as an integral part of the unit a vessel vent. Includes one extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

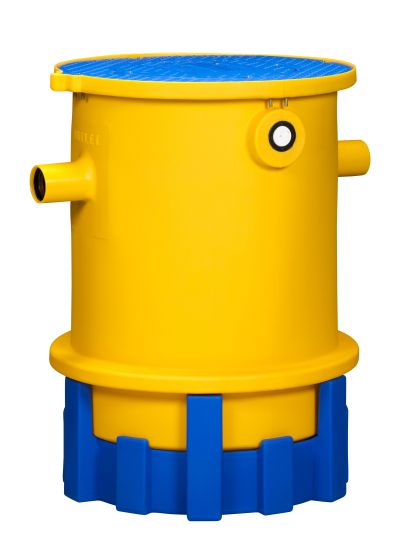

TSS-95-SSA TRAPZILLA SOLIDS SEPARATOR

Comes with a support stand for above-ground installations ​​​​​​​​​​​​​​

The TSS-95-SSA Above-Ground Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids.  Ideally, a TSS-95-SSA Trapzilla Solids Separator would be installed in conjunction with a TZ-600-SSA or TZ-1826-SSA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency.  In-Ground Trapzilla Solids Separator Models come with a SSOP-70/95 Support Stand and a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Aqua Mundus Trapzilla Model No. TSS-95-SSA, rotationally molded poly- ethylene solids separator(s) for above-ground installation, rated at 150 gallons per minute (9.46 l/s) peak flow, 95 gallons (359.61 l) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent. Included support stand manufactured out of linear low-density rotationally molded polyethylene.
